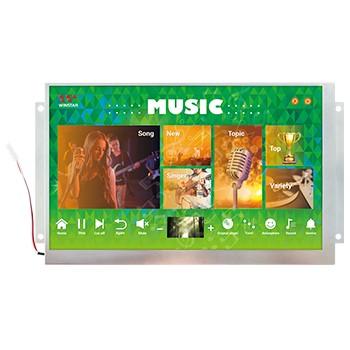

7" TFT LCD 800x480 with Controller Boardarrow_backTil oversigten
WF70C4TIBGDAN0 is a 7-inch TFT LCD module with a controller board, resolution WVGA 800x480 pixels. This TFT model is built-in with SSD1963 IC and supports 8080 MPU (8bit Parallel) interface, view direction of 12 o'clock, gray scale inversion of 6 o'clock, aspect ratio of 16:9, contrast ratio of 1000:1 (typical value), brightness of 500 nits (typical value), anti-glare surface panel.
The supply voltage for LCM (VDD) of WF70C4TIBGDAN0 is from 3.0V to 3.6V, with the typical value of 3.3V. It can be operated at temperatures from -20℃ to +70 ℃ and storage temperatures from -30 to +80 ℃. The WF70C4 series is an alternative solution for the WF70H series, which has been End-of-Life (EOL).
■ Size : 7 inch
■ Resolution : 800 x 480 dots
■ View Direction : 12H
■ Interface : Digital 8080 family MPU( 8bit Parallel )
■ Controller IC: SSD1963
■ Control Board : Yes
■ Brightness(cd/m2): 500
■ Frame Through Hole : Yes
■ Touch Panel : No
